Element Properties

located on the alter plan tool bar, the element properties button displays properties relevant to the selected drawing element. the button is inactive if more than one element has been selected.

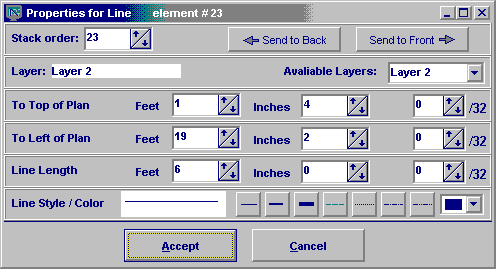

    This element is a line

• Change the Stack Order to move a drawing element in front of, or in back of other elements.
• Select a new layer to assign to the drawing element.
• Move the element by changing the distance to the top and left of the plan.
• Change the length of the element.
• Change the line style and color.
• Other properties will be displayed if they are relevant to the selected element.

Hint:  Right-clicking on a drawing element will select that element and produce a pop-up menu with items relevant to the type of element selected. You can select the Properties screen from that menu.
